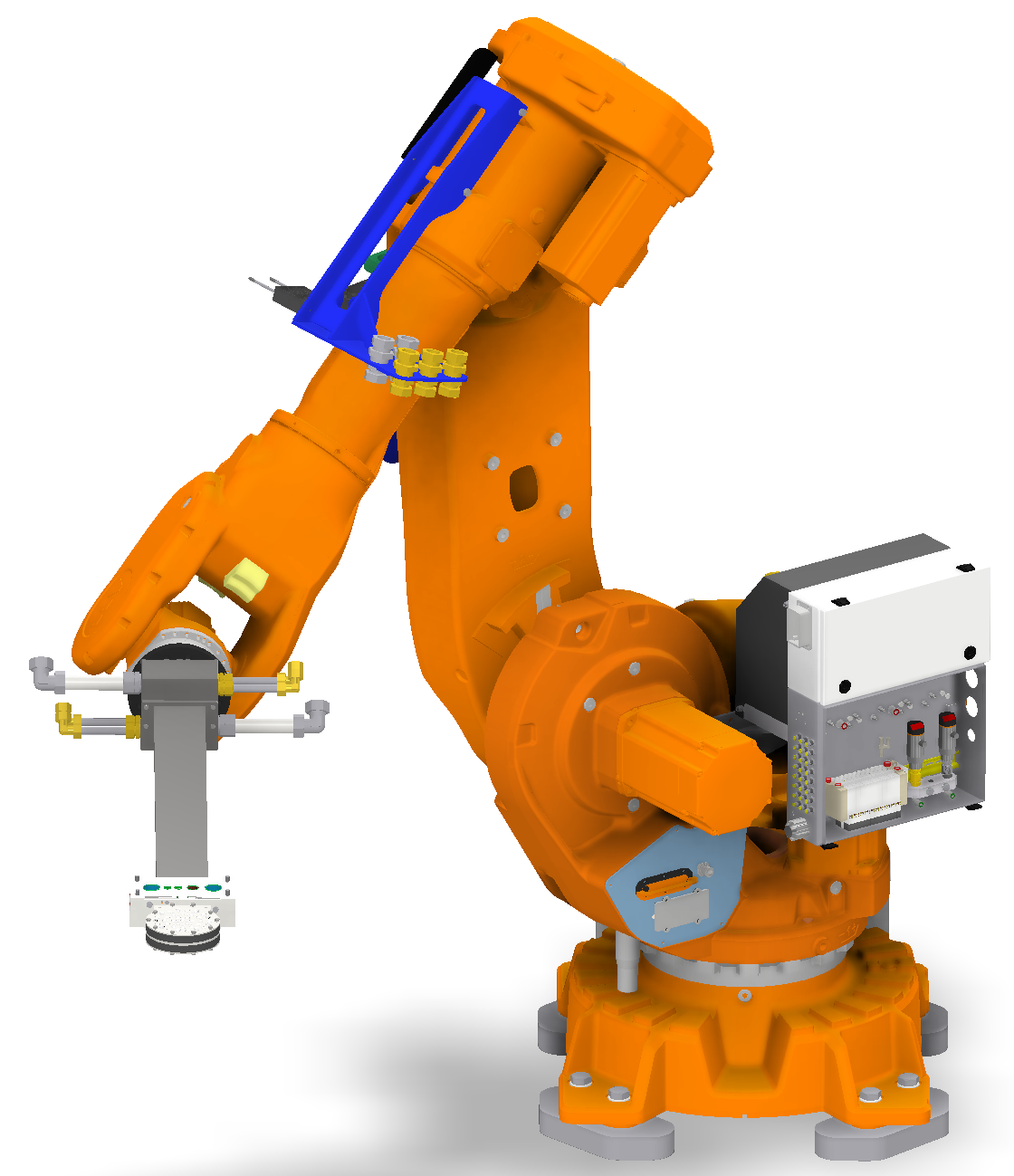

The DAG2020R DF15-HSF die spraying device was specially designed for forging presses from 2000 to 4000to. The rough conditions in practical forging operations were fully taken into account in the design. The AED spray equipment is mounted on a standard industrial robot and fully integrated into the robot control. Correspondingly large media lines ensure an optimal supply of the spraying tool. The spray equipment is available for ABB, Fanuc and Kuka robots. The equipment of other industrial robots is possible on request.


  • External mixing nozzles for best performance in the process
  • Spray plate as matrix, nozzles or blind plugs can be used to adapt to the contour.
  • ast switching, valves which prevent dripping
  • Pressure control air, spray top/bottom and separate blowing
  • Functions fully integrated in robot
  • Command range of the robot extended by the spraying functions
  • Connection for flow and return enable a ring line to the sprayer


  • Base plate for fastening to the floor
  • Base for extending the working space
