DAG2020R-DF20

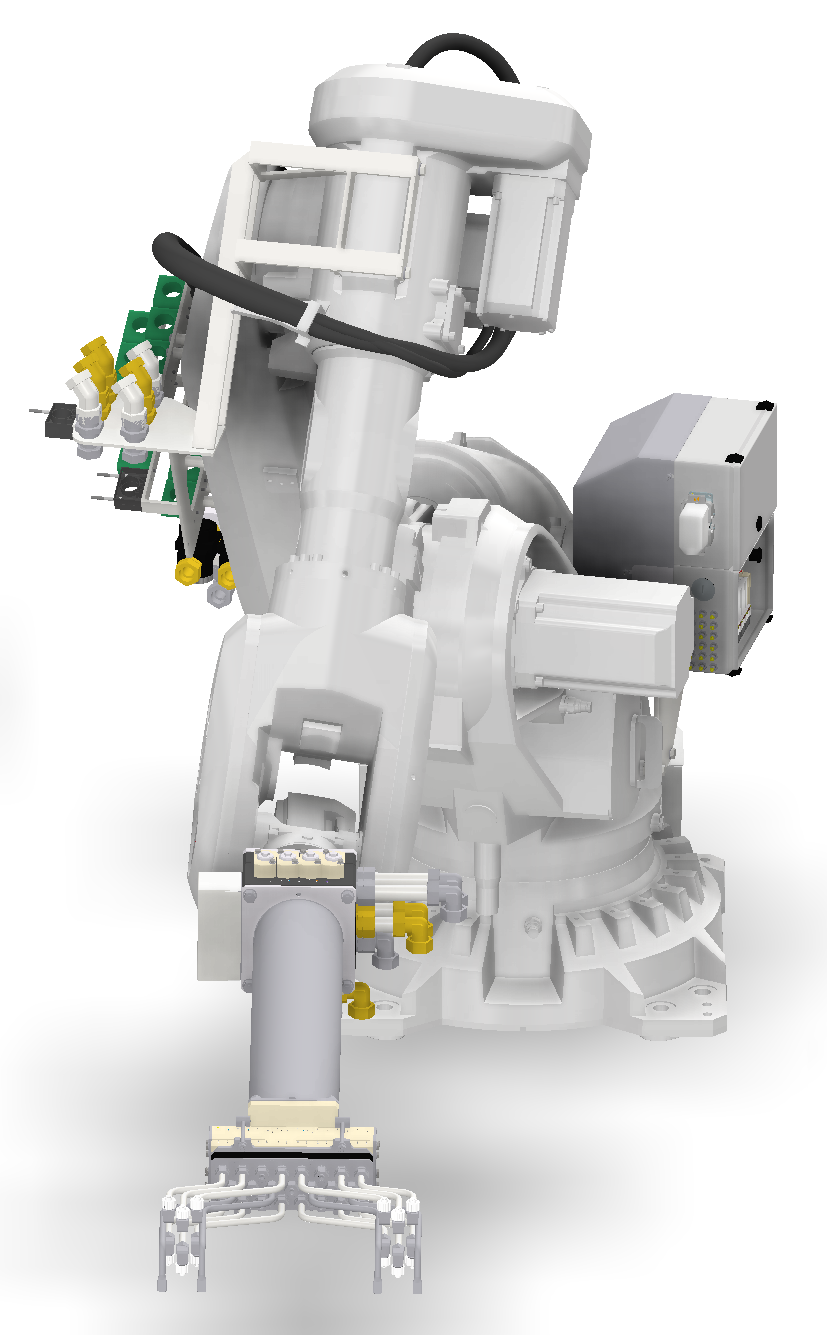

The DAG2020R DF20S die spraying device was specially designed for forging presses from 3000 to 6000to. The harsh conditions in practical forging operations were fully taken into account in the design. The AED spray equipment is mounted on a standard industrial robot and fully integrated into the robot control. Correspondingly large media lines ensure an optimal supply of the spraying tool. The spray equipment is available for ABB, Fanuc and Kuka robots. The equipment of other industrial robots is possible on request.

Features

  • Outer mixing nozzles made of PTFE to reduce the tendency to clogging
  • Modular spray tool, tubes which can be bent and adjusted as required
  • 4 spray circuits top and bottom
  • Pressure control air, spray top/bottom and separate blowing
  • Pressure control medium 2 x top/ 2 x bottom
  • Functions fully integrated in robot
  • Command range of the robot extended by the spraying functions
  • Connection for supply and return enable a ring line to the sprayer

Options:

  • Base plate for fastening to the floor
  • Base for extending the working space
DAG2020R-DF20
DAG2020R-DF20

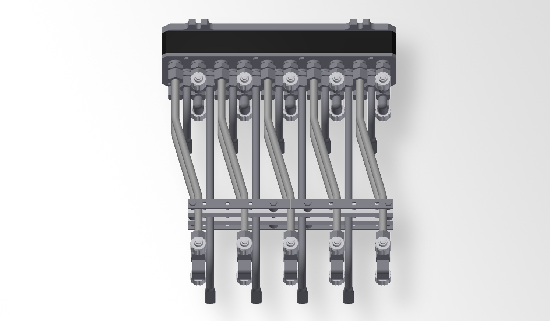

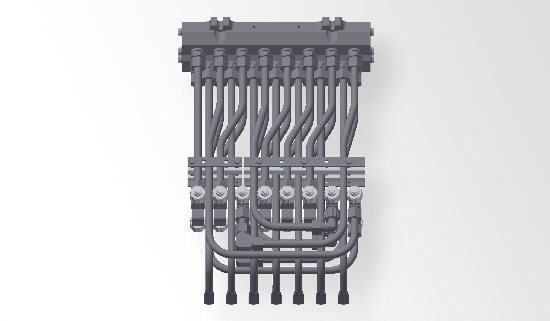

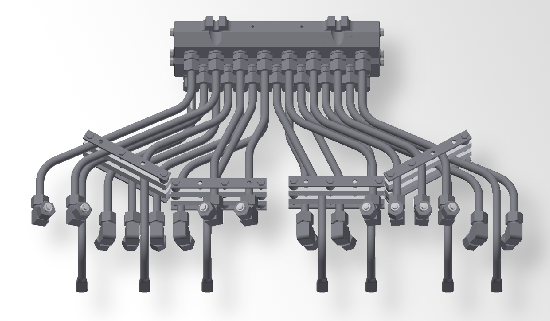

DAG2020R-DF20 Spraying Tools

2 Forming operations: Sprayer at the press window Page
2 forming operations: Sprayer at rear the press window
2 forming operations: Sprayer at the side press window
