DAG2020R-DF 15/15A/15S/BWE

The DAG2020R die spraying devices were designed for forging presses from 2000 to 6000to or for reverse extrusion. The rough conditions in practical forging operations were fully taken into account in the design. The AED spray equipment is mounted on a standard industrial robot and fully integrated into the robot control. Correspondingly large media lines ensure an optimal supply of the spraying tool. The spray equipment is available for ABB, Fanuc and Kuka robots. The equipment of other industrial robots is possible on request.

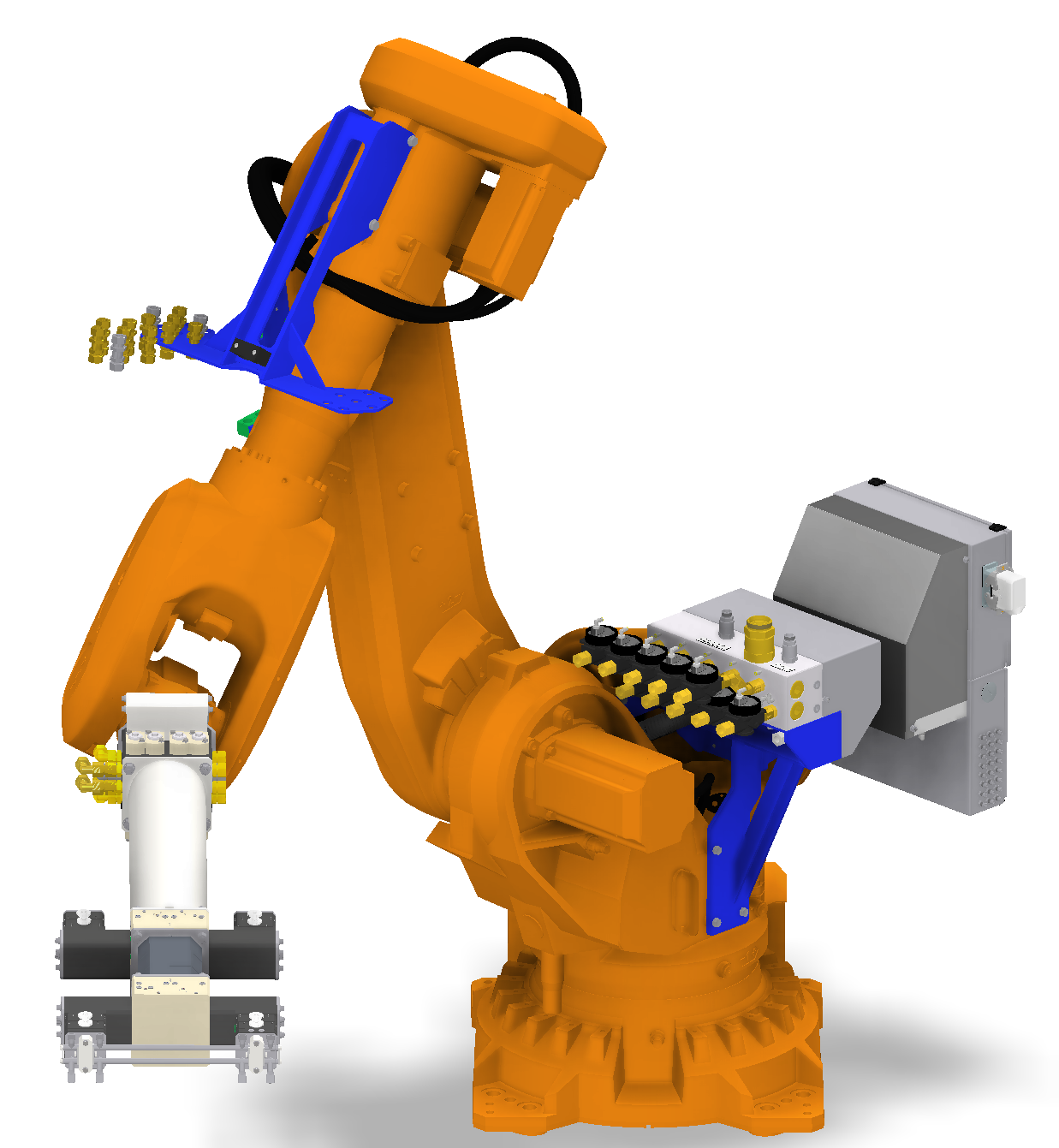

DAG2020R-DF15

The DAG2020R DF15 die spraying device was specially designed for forging presses from 3000 to 6000to.

Features:

External mixing nozzles made of PTFE to reduce the tendency to clogging
Spraying tool of modular design, segments which can be lined up in a row
4 spray circuits top and bottom
Pressure control air, spray top/bottom and separate blowing (can be extended if required)
Pressure control medium top/bottom (can be extended if required)
Functions fully integrated in robot
Command range of the robot extended by the spraying functions
Connection for supply and return enable a ring line to the sprayer

Options:

Base plate for fastening to the floor
Base for extending the working space

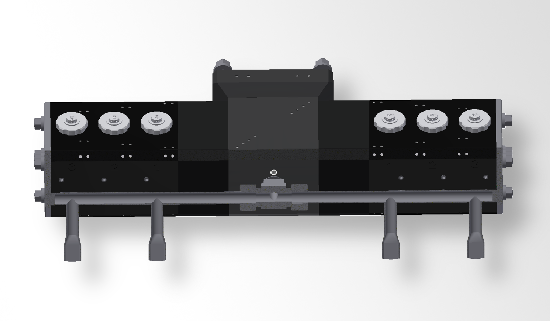

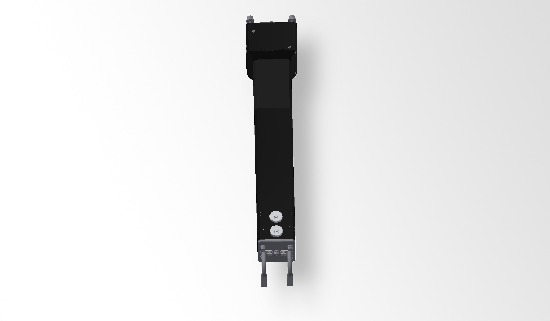

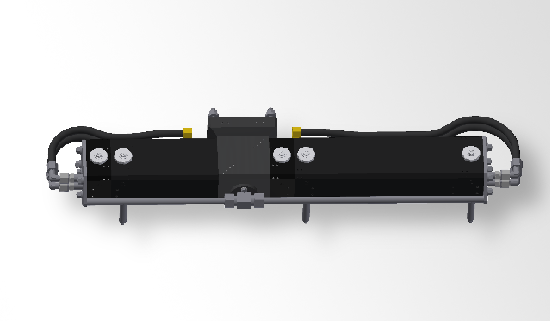

DAG2020R-DF15 Spraying Tools

2 Forming operations: Sprayer at the rear of the press window

3 Forming operations: Sprayer at the rear of the press window

1 Forming operation: Sprayer at the press window Page

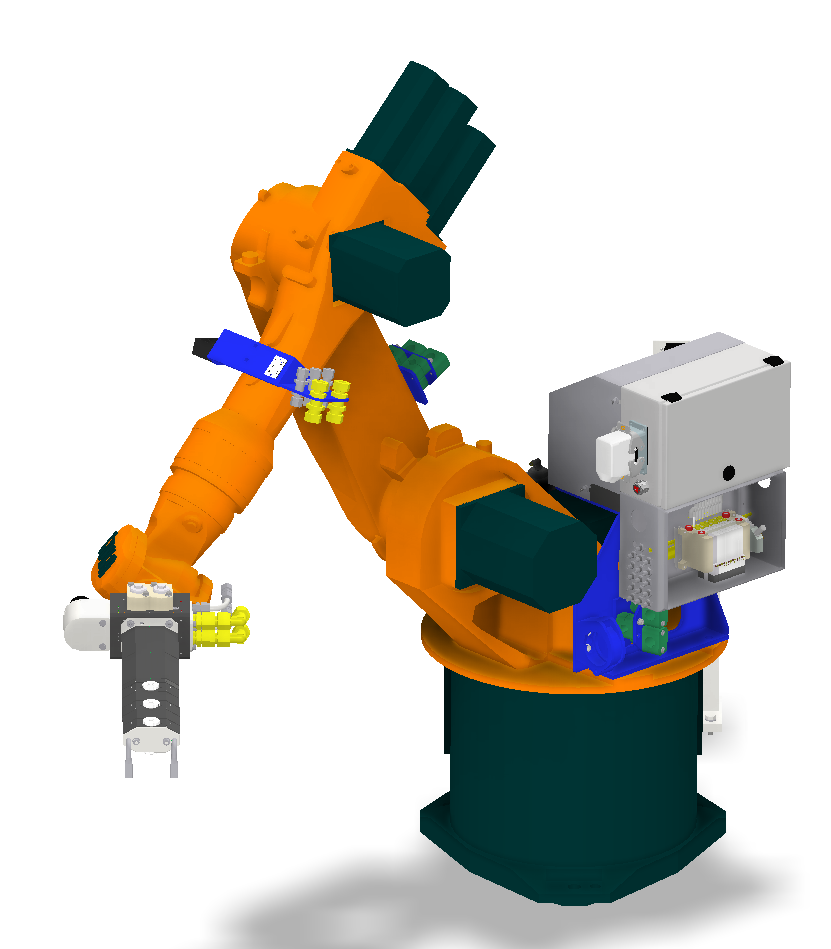

DAG2020R-DF15S

The DAG2020R DF15S die spraying device was specially designed for forging presses from 2000 to 4000to.

Features:

External mixing nozzles made of PTFE to reduce the tendency to clogging
Spraying tool of modular design, segments which can be lined up in a row
2 spray circuits top and bottom
Pressure control air, spray top/bottom and separate blowing
Pressure control medium top/bottom
Functions fully integrated in robot
Command range of the robot extended by the spraying functions
Connection for supply and return enable a ring line to the sprayer

Options:

Base plate for fastening to the floor
Base for extending the working space

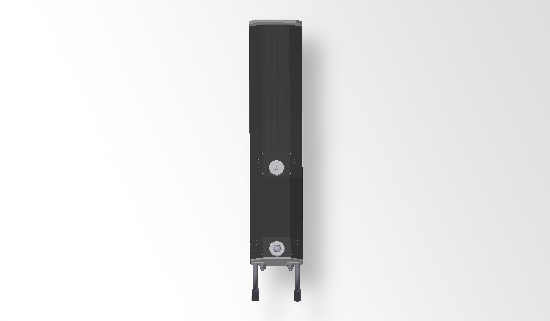

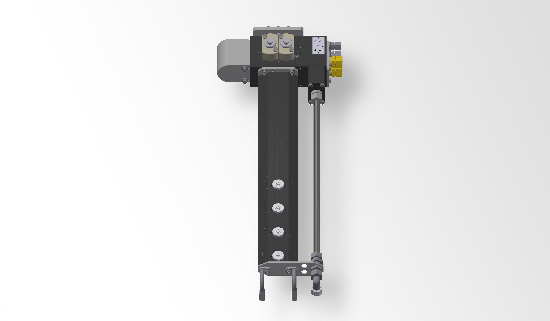

DAG2020R-DF15S Spraying Tools

2 Forming operations: Sprayer at the press window Page

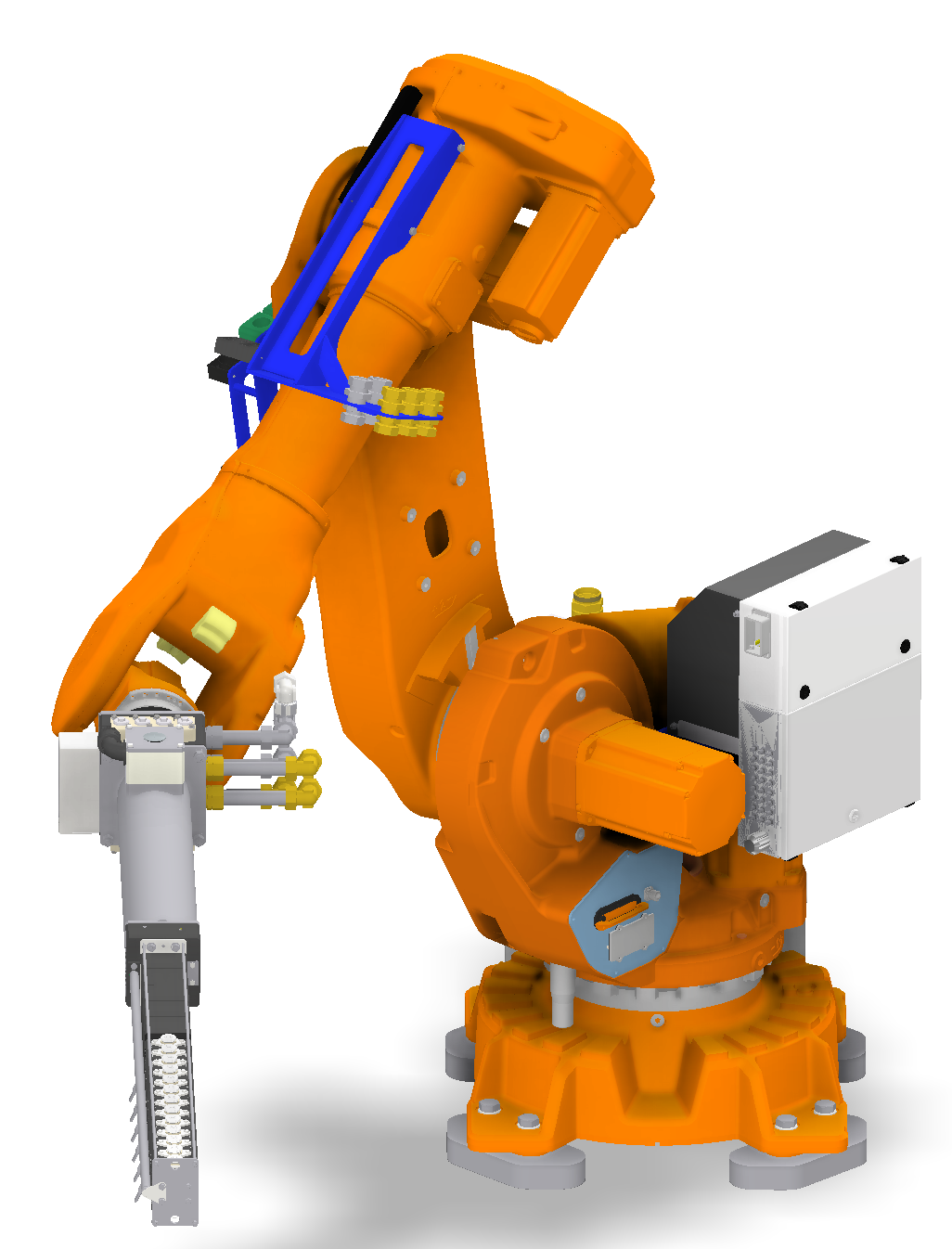

DAG2020R-DF15A

The DAG2020R DF15A die spraying device was specially designed for forging presses from 3000 to 6000to.

Features:

External mixing nozzles made of PTFE to reduce the tendency to clogging
Spraying tool of modular design, segments which can be lined up in a row
12 spray circuits top and bottom
Pressure control air, spray top/bottom and separate blowing
Pressure control medium in 4 areas top/bottom
Functions fully integrated in robot
Command range of the robot extended by the spraying functions
Connection for supply and return enable a ring line to the sprayer

Options:

Base plate for fastening to the floor
Base for extending the working space
Water rinse switch

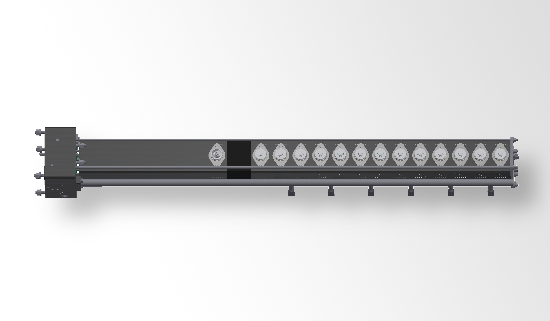

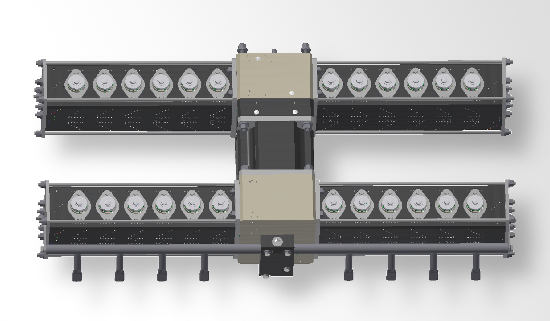

DAG2020R-DF15A Spraying Tools

2 Forming operations: Sprayer at the press window Rear

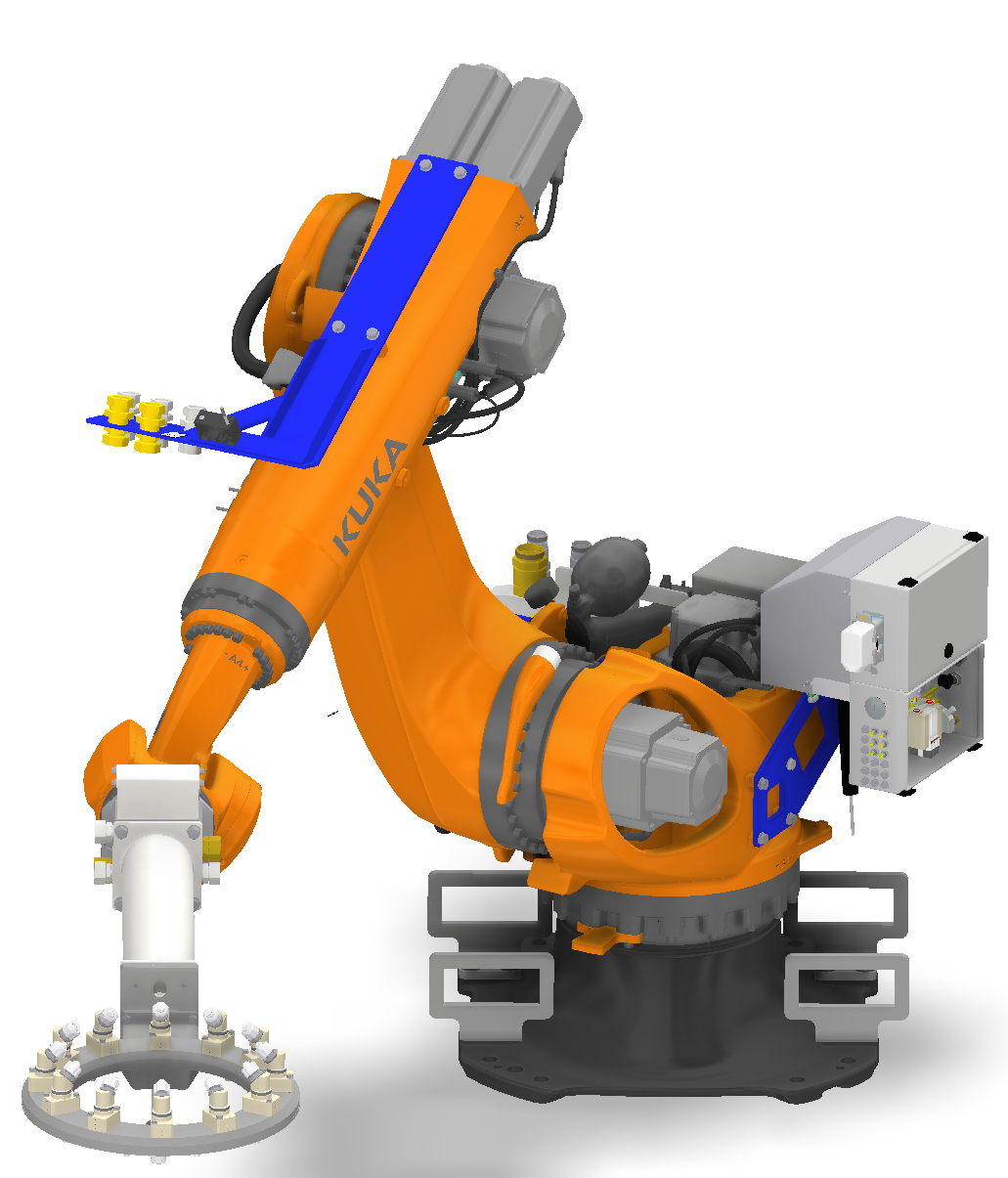

DAG2020R-DF15-BWE

The DAG2020R DF15BWE die spraying device was specially designed for reverse extrusion. With a spray ring, the mandrel is quickly cooled and then sprayed. A snorkel can then be used to spray the bottom die.

Features:

External mixing nozzles made of PTFE to reduce the tendency to clogging.
Spray tool as a ring for above and as a snorkel for below, the dimensions are adapted to the conditions.
2 spray circuits above and 1 spray circuit below
Pressure control air, spray top/bottom and separate blowing (bottom)Pressure control medium top/bottom
Functions fully integrated in robot
Command range of the robot extended by the spraying functions
Connection for supply and return enable a ring line to the sprayer

Options:

Base plate for fastening to the floor
Base for extending the working space
