DAG 181-070

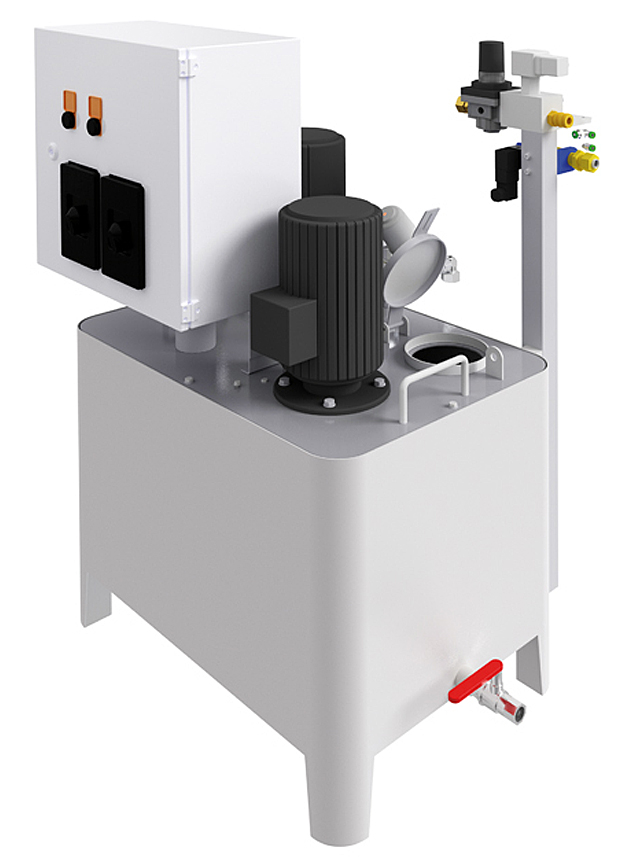

DAG® 181-070 is a batch mixing system with a working volume of 70 litres. The system is reliably mixing water and lubricant concentrate. By default the dosing of the lubricant is done manually. An electrical pump supplies the lubricant to the connected spraying device(s).
Features
- Stainless steel tank, media resistant against aggressive lubricants
- Pressure less mixing tank
- Electrical supply pump
- Water connection for easy rinsing
- Level control with acoustic warning signal
Options
- Slow moving stirrer (electrically driven)
- Connection for hand spray gun (DAG® 087/090)
- Automatic dosing unit
- Dosatron® 0.5% - 4% or 3.0% - 10.0%, incl. accessory kit and mounting frame
- ELADOS dosing pump 0,3-2,0%, incl. accessory kit and mounting frame
- Pump with higher delivery rate
- Twin tank System
Customer value
- Reliable lubricant supply
- Ease of operation
- Low maintenance requirements
- Variable dilution ratio (per batch)
Technical Data
| Feature | Data | |
| Tank volume | 96 l | |
Technical Data, control unit
| Feature | Data | |
| Control unit | Simple control unit for monitoring the filling level, safeguarding the internal components. | |
| Interface | Potential-free interface to the higher-level control (spraying system) | |
Connection data
| Feature | Data | |
| Release agent connection | 1 x DIN 2553 G 1" D28 NW25 | |
| Water connection | 1 x DIN 2553 G ½" D15 NW13 | |
| Release agent delivery rate (max.) | 3000 l/h at 3.8 bar | 4800 l/h at 5.8 bar |
| Connected load | approx. 1.2 kVA | approx. 1.7 kVA |
| Mains voltage | 3 x 400V PE +/- 10 % | |
| Mains frequency | 50-60 Hz | |
| Dosatron mixing ratio | 0.5% - 4% or 3.0% - 10.0% | |
| Elados mixing ratio | 0.3% - 2% | |
| Ambient temperature | +5°C to 40°C | |
