Flextool Standard

FLEXTOOL Spraying Tools

Modularity

Due to the fully modular concept, a FLEXTOOL™ conforms easily and well to the die`s shape, so the nozzles can be positioned in the exact right position for maximum performance. This contributes to reduced spray times. Its low weight protects the reciprocator and ensures more dynamic movement, further reducing cycle time.

Power and Control

The air and lube supply lines have a significantly higher capacity than other spraying tools on the market. Together with the control of the AED sprayware this provides a very broad range of operation and also ensures an environmentally friendly operation. From ‘micro-spraying’ to power-spraying - Flextool™ can do. Rapid drying of the die is insured by the powerful blowing circuits.

Flexibility

With up to 8 independent spray circuits and 2 blow circuits, the FLEXTOOL™-series ensures maximum flexibility. All spray circuits can be utilized on either side of the die, and groups of nozzles can be assigned to different circuits.

Low Maintenance - High Availability - Process Stability

Flextool is well known for best values in process performance but as well for high availability and literally very low maintenance requirements. If needed, maintenance is easy to do and the original setup of the tool can be reestablished accurately. Color coded flow control plugs in the spraying heads make the setting easy and visible.

Flextool Standard
FLEXTOOLS

FLEXTOOL Product Range

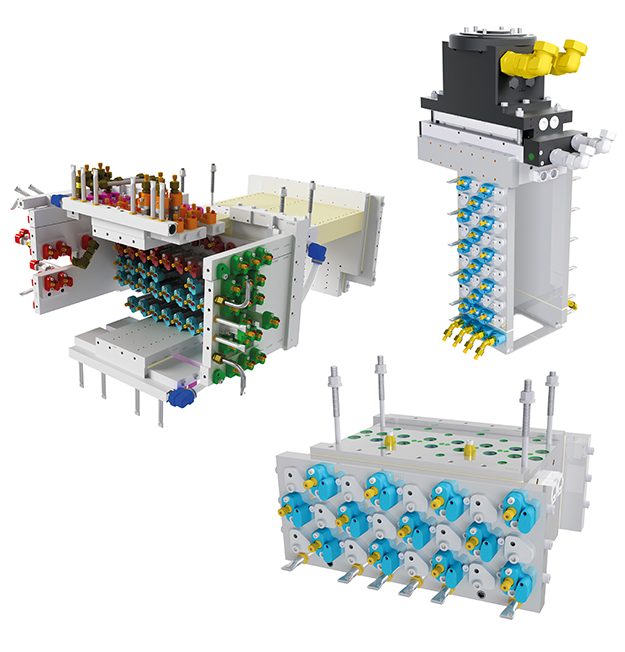

For utmost flexibility and perfect alignment to individual process requirements, Flextool™ spraying tools are available in three different series:

FLEXTOOOL STANDARD FLEXTOOL DIE GEOMETRY FLEXTOOL MULTIFUNCTION

FLT 6 with 4 Extensions

FLEXTOOL FLT6 STD

FLT 8 for 4 Cyl. Engine

FLEXTOOL FLT 8 DG

FLT 8 Robospray

FLEXTOOL FLT 8 MF

Recommended for:
MCT Series


MCT 2/MCT 3
DAG 3000
DAG 1100/1200
DAG 3000 RS


  • Depending on DCM-size, production strategy, production volume, line setup, etc. the best suitable tool can be selected. Each type is available as FLT 4, FLT 6 and FLT 8.
  • DELTASPEED MQS nozzles can be used with all types.

FLEXTOOL Standard Tool for MCT Series

The Flextool series starts with a standard basic tool. On the one hand this is already a good performing spray tool, and on the other hand it can be easily extended - even to a die geometry tool.

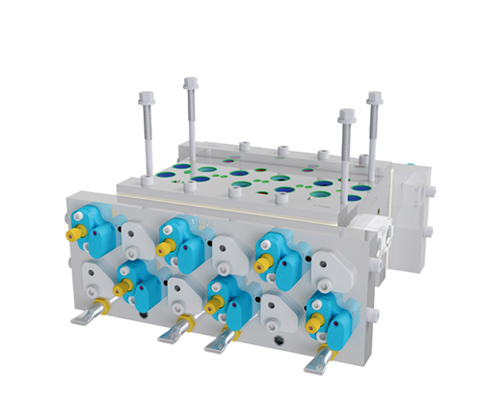

Flextool FLT 4
Flextool FLT 4

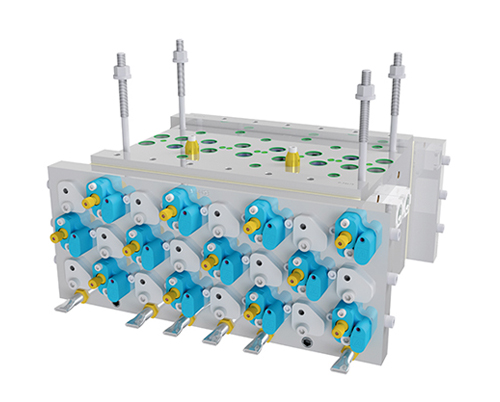

Flextool FLT 6
Flextool FLT 6

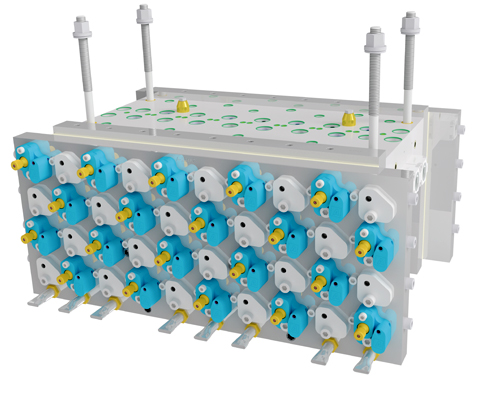

Flextool FLT 8
Flextool FLT 8
Character FLT 4 FLT 6 FLT 8
Length, active, min. 300 mm 400 mm 500 mm
Length, active, max. 800 mm 1000 mm 1100 mm
Nozzles (max.) 75 120 176
Tool Weight > 20 kg > 50 kg > 65 kg
Spraying Circuits 4 6 8
Blowing Circuits 2 2 2
Number of Media 2 2 4
Best Fit With MCT 1 MCT 2 MCT 3
