Flextool Die Geometry Tools

  • Starting with a standard Flextool its potential extension has almost no limits.
  • Every nozzle which is necessary for spraying the complete surface of the die can be positioned optimally. The combination of right nozzle distance and 90° spraying angle to the surface is one part of highest efficiency.
  • Flextool enables a very high level of media supply - and equally important, provides perfect control. The perfect adaption to the die geometry results in very short spraying cycles - the complete die can be treated without additional movement in ‘one shot’.
  • Even when die geometry tools can be rather big, the lightweight design of Flextool makes dynamic movement of reasonably small manipulators possible.
  • Die geometry tools can be used either with manipulators of the MCT series or DAG 3000 Robots. The FLT 4 to FLT 8 range allows perfect adaption to the DCM-size.
  • FLEXTOOL’s can by utilized with DELTASPEED MQS Technology

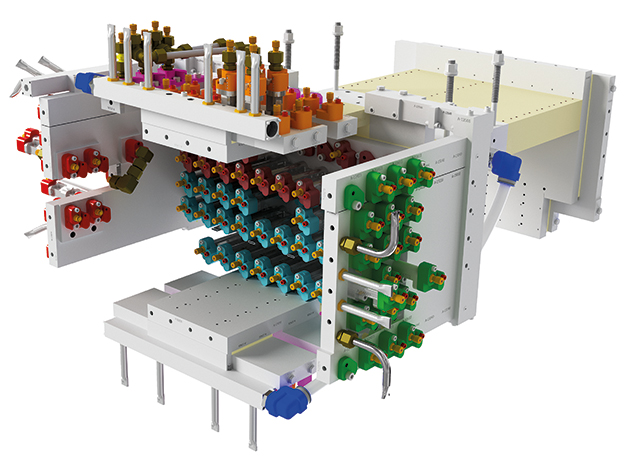

Flextool Die Geometry

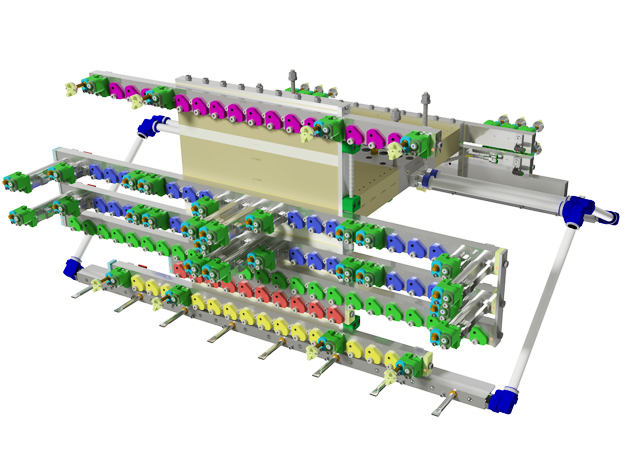

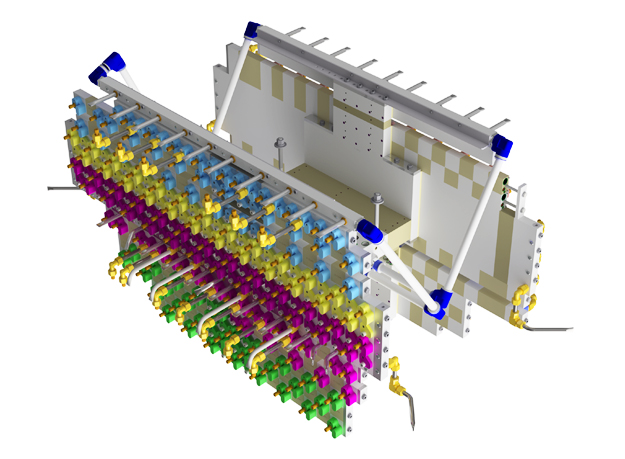

FLEXTOOL „DG“

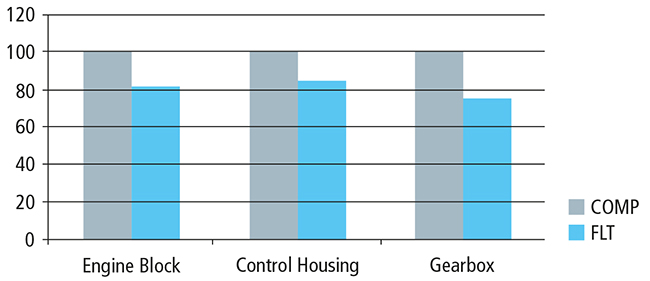

Saving Cycle Time with Flextool

Flextool Optimization Parts

  • The AED FLEXTOOL platform is a comprehensive toolbox allowing the adaption of the tool setup to all known process setups.
  • The high level of alignment of the spraying tool and the corresponding die geometry is leading to maximum performance of the cooling and lubricant application process.
  • The FLEXTOOL toolbox is containing numerous parts allowing the perfection of the tool’s spraying pattern.
    − Step one: Based on die geometry data the basic tool setup is created – this already is allowing a close adaption to the die‘s geometry.
    − Step two: Using the various optimization parts, any area of the die can be treated exactly as needed for best performance and efficiency.
  •  All parts can be easily added and adjusted either by the customer or the AED service team.

Please see download area for pdf-copy of this information!

Standard Spray Head

Pos. Art. No. Spray Cone Spray Direction Height [mm] Remark Picture
1.1 A-13408 standard straight 40   1
1.2 A-14766 45° straight 30
1.3 A-13417 60° straight 30
1.4 A-15055 standard 45° 110
1.5 A-18480 45° 45° 105
1.6 A-14707 60° 45° 105
1.7 A-13414 standard 90° 80
1.8 A-15002 60° 90° 80

Flat Spray Head (low height)

Pos. Art. No. Spray Cone Spray Direction Height [mm] Remark Picture
2.1 A-14834 standard 1x45° 60
2.2 A-14858 60° 1x45° 55
2.3 A-15942 standard 1x90° 45
2.4 A-15943 60° 1x90° 45

Spray Head with Nozzle Extension

Pos. Art. No. Spray Cone Spray Direction Height [mm] Remark Picture
3.1 A-18697 standard 90° (2x45°) 65 with 30 mm extension
3.2 A-18698 standard 90° (2x45°) 80 with 50 mm extension Picture
3.3 A-18695 standard 135° (90°+ 45°) 45 with 30 mm extension Picture
3.4 A-18696 standard 135° (90°+ 45°) 45 with 50 mm extension Picture

Spray Head with Extension - Special Spray Heads

Pos. Art. No. Spray Cone Spray Direction Height [mm] Remark Picture
3.5 A-17842 standard 180° (2x90°) 45 with 30 mm extension Picture
3.6 A-18694 standard 180° (2x90°) 45 with 50 mm extension Picture
4.1 A-17966 standard straight 40 fixed orifice insert Picture
4.2 A-18760 standard straight 25 extra low Picture

Nozzle Extension Kit and Distance Elements

Pos. Art. No. Description Picture
5.1 A-14660 Extension tube with core retainer and quick coupling; elbow combination with orifice
mount. Can be used with all Flextool spray heads
5.2 A-14602 Spacer between spray nozzle and spray manifold; reduces the spray distance by 50mm. Extendable and combinable Picture
5.3 A-16696 Spacer between spray nozzle and spray manifold, reduces the spray distance by 100mm. Extendable and combinable Picture

Metering Screws

Pos. Art. No. Description Remark Picture
5.4 A-13429 Metering screw FLT 0,8mm, yellow   Picture
5.5 A-13430 Metering screw FLT 1,4mm, green   Picture
5.6 A-13431 Metering screw FLT 2,0mm, red   Picture
5.7 A-16201 Metering screw FLT infinitely adjustable   Picture

Blind Plates

Pos. Art. No. Description Remark Picture
5.8 A-13432 Blind plate to cap not used spray nozzle connections   Picture
5.9 A-14833 Blind plate to cap not used spray nozzle connections, allowing the connection of a blow tube   Picture

Nozzle Inserts

Pos. Art. No. Spray Cone Spray Direction Height [mm] Remark Picture
6.1 A-14008 standard straight     Picture
6.2 A-10511 45° straight     Picture
6.3 A-10510 45° straight     Picture
6.4 A-14835 standard 45°     Picture
6.5 A-14857 60° 45°     Picture
6.6 A-15903 standard 90°     Picture
6.7 A-15944 60° 90°     Picture
6.8 A-18871 standard 90° (2x45°)   with 30 mm extension Picture
6.9 A-18872 standard 90° (2x45°)   with 50 mm extension Picture
6.10 A-18873 standard 135° (90°+ 45°)   with 30 mm extension Picture
6.11 A-18874 standard 135° (90°+ 45°)   with 50 mm extension Picture
6.12 A-18875 standard 180° (2x90°)   with 30 mm extension Picture
6.13 A-18876 standard 180° (2x90°)   with 50 mm extension Picture
6.14 A-17263 standard straight straight fixed orifice Picture
6.15 A-18061 standard 90° lateral spray cone lateral spray cone Picture
