DELTACAST RSDC

DELTACAST RSDC SERIES

  • The Robospray RSDC Tool combines a maximum of flexibility - it can be used for any die geometry just by changing the robot programming – with effective, controlled spraying technology.
  • Lubricant and air are individually adjustable within a range of 1,5 to 6 bar. Three different RSDC sizes are available – RSDC 24, RSDC 44 and RSDC 64. They cover almost the complete range of DCM sizes, so you will find exactly what you need.
  • RSDC tools are equipped with Deltacast FCT nozzles
  • Each tool size fits to a certain size of robot.
DELTACAST RSDC

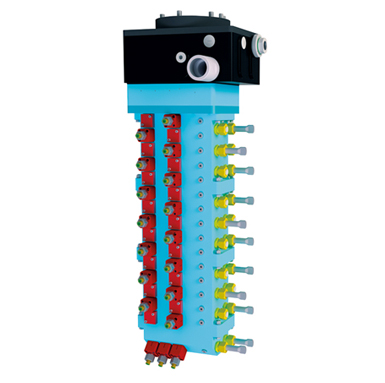

RSDC 64

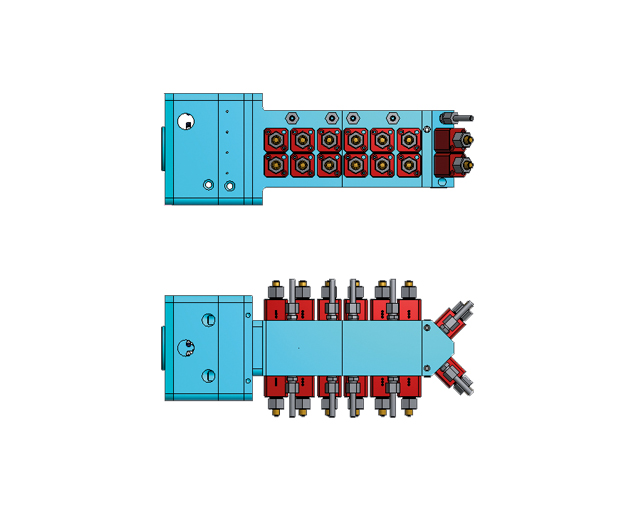

RSDC 24
RSDC 24

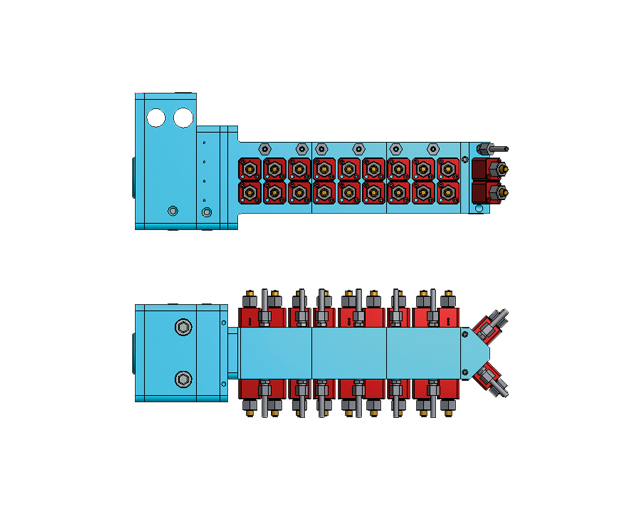

RSDC 44
RSDC 44

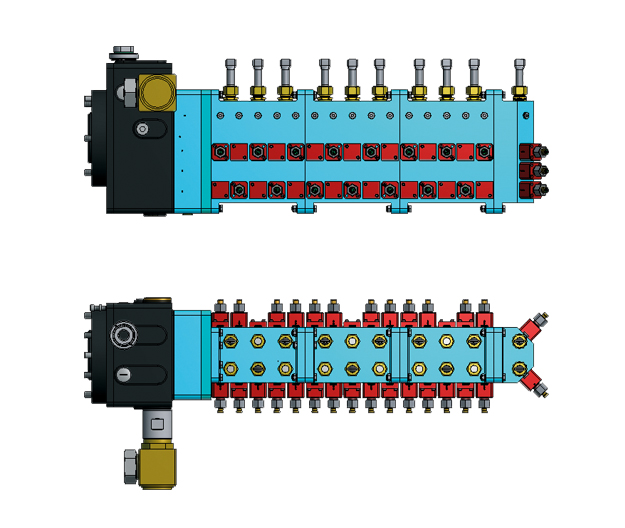

RSDC 64
RSDC 64
Character RSDC 24 RSDC 44 RSDC 64
Length (active) [mm] 325 439 689
Nozzles (max.) 28 40 66
Blow Pipes (max.) 10 14 20
Required Robot Payload ~ 20 kg ~ 30 kg ~ 120 kg
Spray Circuits 6 6 6
Add. Blow Circ. 2 2 2
