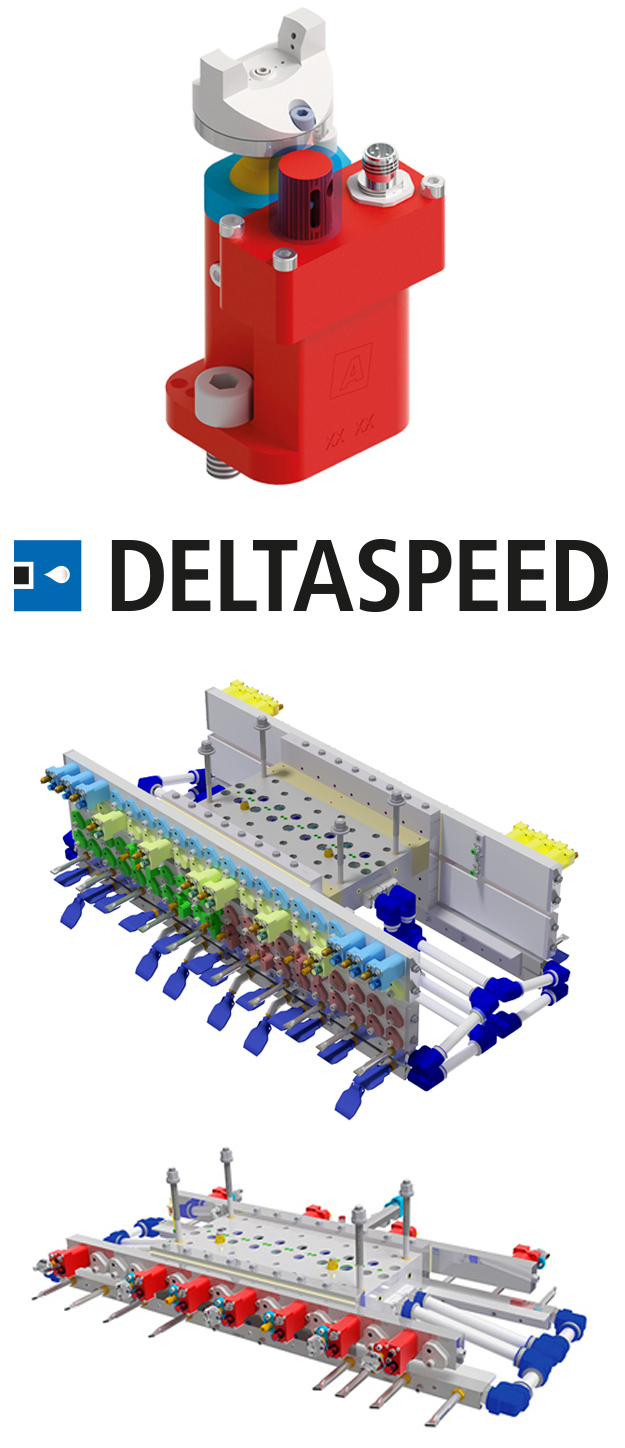

Deltaspeed Nozzle


  • Flexible programming of spray volumes
  • Single nozzle control
  • Optional: Monitoring of indvidual nozzles

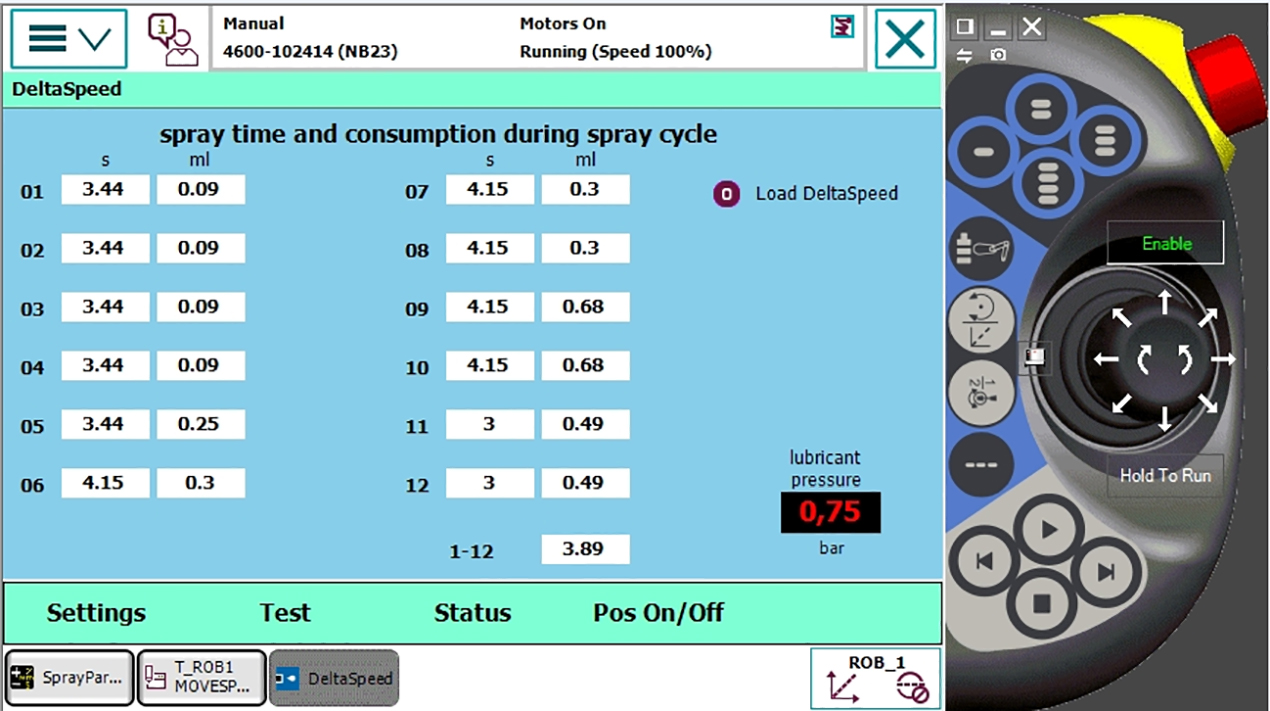

  • All parameters programmable via teach panel. No more manual settings required
  • Simple and intuitive programming
  • Documentation of all process parameters
  • Standard spray heads for multiple dies possible
  • Suitable for water-free lubricants and water-based concentrates


  • Fully integrated system – turn-key solution
  • Upgrade of existing equipment is feasible in most cases
  • Robots or 2-axis linear reciprocators can be used
  • Static and dynamic spray application is feasible
  • Customized spraying tools for shortest cycle times
  • Low(er) number of nozzles – easy setup and maintenance
  • Shorter spraying time even at “big” dies
  • Combinable with external die cooling – Hybrid spray applications


Spraying Process

  • Emissions minimized
  • No “Black Hole” effects
  • Variable tool set-up for perfect surface coverage
  • Very short spraying times (usually no spray cooling)
  • Well suited for bigger dies (e.g. for structural parts)
  • Modular setup allowing step by step technology change

Die and Casting

  • Excellent release properties
  • Very clean surfaces
  • Min. porosity of castings
  • No corrosion
  • Separation of cooling and lubrication (hot spot cooling possible)
  • Increased die life


  • Excellent wetting properties
  • High wetting temperature
  • Absolutely stable - 100% concentrates, water free
  • No or less contamination of waste water with lubricant
  • Significantly less lubricant necessary
  • No risk of bacterial contamination
